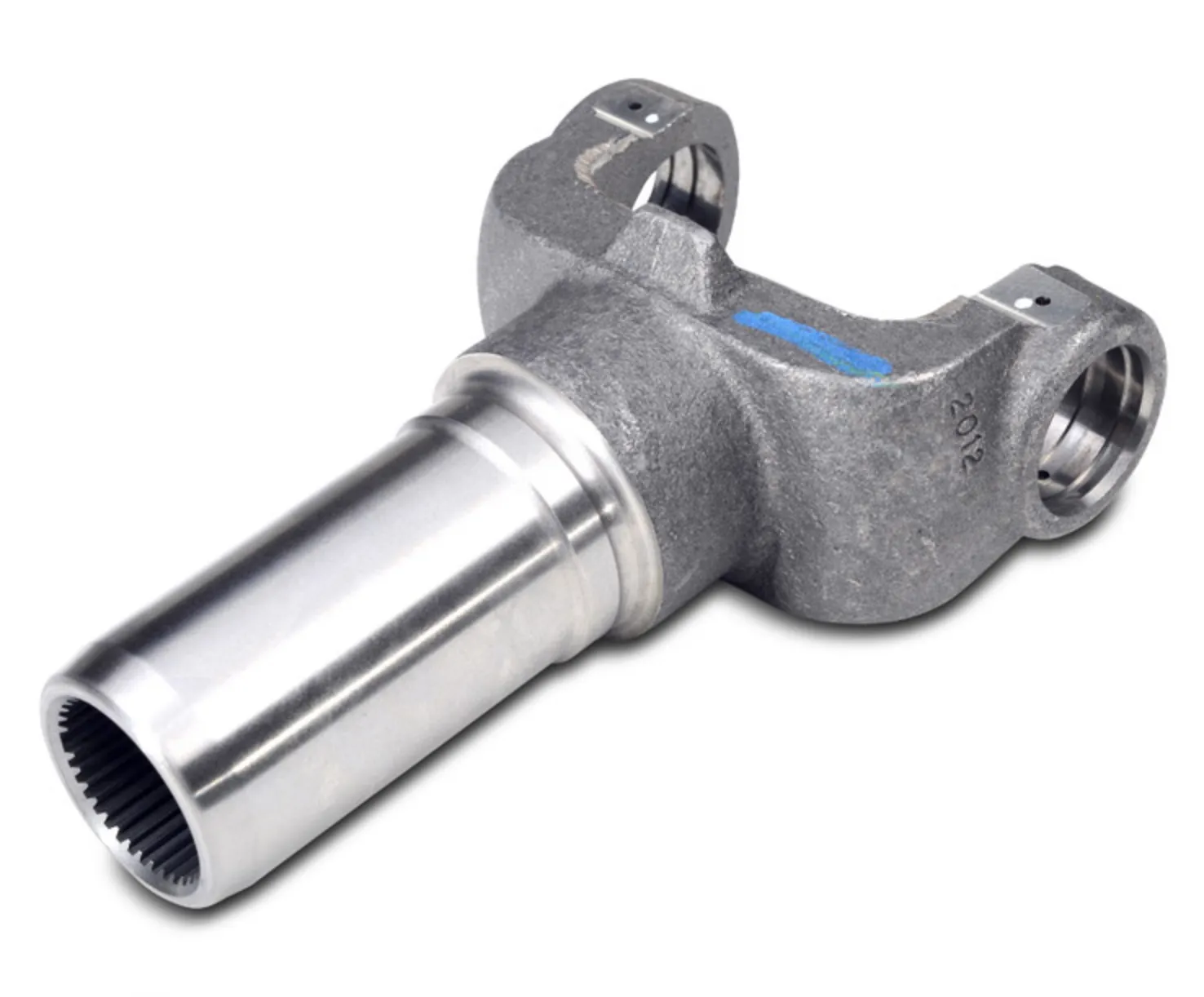

AAM Drive Shaft Transmission Slip Yoke
- Product Specs
- Description
- Diagrams
|
|
|
Fits 2006 Dodge Ram 3500 Rear 2pc / SNAP ON SEAL |
| Series: | 1555 (1550) |
|
Outside Yoke Dimension / U-Joint Lock Up (B): |
4.964 Inch |
| Bearing Cap Diameter (A): | 1.375 Inch |
| Vehicle Make: | Dodge |
| Center Line to End of Spline (C): | 7.441 Inch (189.00 mm) |
| Spline Outside Diameter (E): | 1.547 Inch (39.3 mm) |
| Number of Spline* (F): | 36 (34 with blind spots - see note below*) |
| Barrel Diameter (D): | 2.071 Inch (52.60 mm) |
| Spline Type: | Full Spline |
| Style: | Outside Snap Ring |
| Material: | Steel |
VMRS: 024002038
* The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.
AAM driveshaft components are designed, tested and manufactured to maximize performance and durability. All driveshaft components meet the OEM specifications because they are the authentic OEM products. The same products AAM use to build driveshafts used by vehicle manufacturers around the world Designed utilizing the latest technology, this product by American Axle features premium quality and will perform better than advertised. Perfect for your vehicle and lifestyle, it is manufactured to meet or exceed stringent industry standards.
Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.
Compatible Parts:
AAM Boot and Clamp Kit
Alternate Part Number:
PTI Trans Slip Yoke
OEM Number: 68004857AA
